How Accurate is Automotive Sheet Metal Laser Cutting Technology?

Importance of Laser Cutting in Automotive Steel Manufacturing

In the car steel manufacturing sector laser cutting technology is essential. The precision and efficiency of laser cutting systems are unmatched allowing manufacturers to create designs with minimal waste. This technology is crucial in making sheet metal parts, where accuracy and consistency are key. Cutting metals with precision ensures fitting components minimizing the need, for further processing and adjustments. Furthermore cutting grants room for creativity in design which helps manufacturers to promptly adjust to alterations, in design specifications or production needs.

Benefits of Using Laser Cutting for Automotive Sheet Metal

Using laser cutting for automotive sheet metal provides various advantages over traditional uncoiling blanking equipment in terms of energy efficiency and weight savings among others;

1. Energy efficiency is a key benefit as the power consumption during blanking is significantly lower at only 30% to 50% compared to conventional stamping equipment.
2. Lightweight design is another advantage with the equipment weighing 20% 40% making it easier to handle and maneuver.
3. One major perk is the absence of tooling costs which enhances flexibility in production processes.
4. Improved material utilization is achievable using this method.
5. The maintenance-free nature of lasers ensures a service life and reduces downtime for upkeep.
6. Not requiring consumables results, in operating costs overall.
7. Additionally, the process produceslow noise levels thus creating a quieter working environment.

Laser cutting offers advantages for manufacturers aiming to streamline production efficiency and reduce expenses and environmental footprint.

What is Laser Cutting Technology

Utilizing laser cutting technology entails the utilization of a laser beam to precisely cut materials into desired shapes and dimensions with accuracy and efficiency across various materials like metals and plastics while minimizing distortion or excess waste through melting or vaporizing, along the intended path.

How Laser Cutting Works

Components of a Laser Cutting System

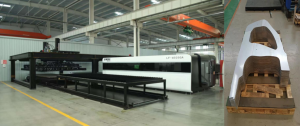

In a laser-cutting setup, you’ll find various important parts working together. A laser resonator makes the laser beam come alive; a beam delivery system guides the beam onto the material surface; a motion control system maneuvers the material or laser head when required; and a computer numerical control (CNC) unit oversees everything based on preset commands.

Process Flow of Laser Cutting for Automotive Sheet Metal

The laser cutting process for sheet metal starts with creating the component using computer-assisted design (CAD) software. Once the design is approved it gets transformed into a format that works with the CNC unit that operates the laser cutter. Introducing Aluminum Silicon Coated Hot Forming Laser Welding Equipment specifications; Laser Power at 6KW Welding Speed between 3 to 8 m/min and Position Accuracy of.02mm showcases how cutting-edge technology improves accuracy, in operations.

When cutting with a CNC machine the unit guides the material or laser head to make cuts as per the design requirements. The concentrated heat, from the laser beam melts. Turns the material into vapor along its route producing accurate cuts without using any physical force or contact.

Ultimately using laser cutting for sheet metal presents clear advantages compared to conventional techniques in accuracy and adaptability. Employment of systems such as the Dynamic Laser Blanking Line with Linkage Technology enables manufacturers to enhance energy efficiency and lower operating expenses while upholding elevated levels of quality and precision, in their goods.

Factors Affecting the Accuracy of Laser Cutting

Types of Lasers Used in Automotive Applications

In the world of laser cutting for sheet metal fabrication different kinds of lasers are utilized with unique features that impact accuracy. CO2 lasers are commonly utilized for their capacity to cut through materials using high power levels. On the other hand fiber lasers have become more popular because of their efficiency and speed, in cutting thin metals swiftly. The type of laser chosen significantly impacts the precision and quality of cuts made in settings.

Impact of Laser Power on Precision

The strength of the laser plays a role in deciding how precise the cuts will be performed on various material thicknesses. It is noteworthy that higher power settings allow the laser to cut through materials effectively but may result in larger heat-affected zones which could affect accuracy. The lower power settings can improve precision especially when working with thin materials as it minimizes thermal distortions. The specifications such as Laser Power of 6KW Weld Speed of 3 to 8 meters per minute and Position Accuracy of ±0..02mm underline the significance of technology in improving accuracy, in tasks.

Influence of Material Thickness on Cut Quality

The thickness of the material being cut is crucial in deciding the quality of the cut made by the laser machine. Thicker materials demand laser power and slower cutting speeds to ensure accurate outcomes while thinner materials can be cut faster with less power. Finding the mix of speed and power is key, to ensuring top-notch cuts regardless of material thickness variations.

Effects of Different Material Types on Accuracy

Different materials exhibit responses when exposed to laser cutting due to characteristics such as reflectivity heat conductivity and melting points For instance aluminum reflects more laser energy than steel requiring adjustments in power and speed settings for accurate cuts Understanding these material properties is crucial, for improving the effectiveness of laser cutting processes

Role of Cutting Speed in Determining Precision

Cutting with a laser at varying speeds impacts the precision and quality of cuts made; Faster cutting may compromise accuracy due to in creased heat distortion and difficulty, in controlling the lasers cutting path; whereas slower speeds enhance precision by allowing the laser to interact with the material thoroughly for results.

Environmental Factors Influencing Cut Accuracy

Changes in the environment such as shifts in temperature or humidity levels may influence the accuracy of laser cutting operations by causing materials to expand or contract and impacting precision levels accordingly. Additionally, particles like dust or debris in the area could potentially disturb the trajectory of the laser beam. Result in inconsistencies, in the quality of cuts produced.

Techniques to Improve the Precision of Laser Cutting

Ensuring Material Flatness for Optimal Cuts

It’s really important to make sure that the materials are flat before you start cutting to get the best results possible. When surfaces are warped or uneven they can cause inaccuracies by messing up where the laser beam is focused. By handling and preparing materials properly you can keep them flat. Enhance the precision of your cuts overall.

Setting Parameters Based on Material Type

Tailoring parameters such as power, speed, and focus based on material type is essential for maximizing precision. Each material requires specific settings to achieve clean cuts without excessive heat-affected zones or burrs.

Adjusting Speed and Power for Enhanced Accuracy

Adjusting the speed and power settings based on the thickness and type of material improves precision by reducing heat distortion and ensuring depth of penetration.

Optimizing the Sequence of Cuts for Better Results

Careful planning of the cutting order can help avoid heat accumulation in specific areas that could impact the precision of future cuts adversely; by fine-tuning this order through precise programming, CNC systems manufacturers can maintain a high level of quality consistently.

Introduction to Promispecial® Sheet Metal For Cars

Promispecial® introduces a strategy, for creating custom steel products tailored to tackle the unique obstacles encountered in today’s automotive sector around the globe. By utilizing cutting-edge methods and modern processing capabilities manufacturers can now produce top-notch parts that meet the rigorous standards of modern vehicles operating in harsh conditions worldwide. Contact us to learn more about automotive steel knowledge and choose the most suitable steel metal for cars.

FAQ

Q: All laser cutting machines have the same precision?:

A: The accuracy of laser cutting machines varies depending on the type (carbon dioxide, fiber optic, or crystal), power settings, and design. Each type has its unique advantages and limitations, which can affect accuracy.

Q: Cutting thicker materials can achieve the same precision as cutting thinner materials?:

A: Cutting thicker materials often poses a challenge to the accuracy of lasers due to beam diffusion and heat dispersion.
